20CC Tungsten Alloy Syringe Shield

Manufactured by Zhuzhou Jiuding Metal Technology Co., Ltd, this 20cc tungsten alloy syringe shield is a lead-free radiation protective device, specially developed for nuclear pharmacy, PET and SPECT laboratories to safely handle, dispense and transport radiopharmaceuticals loaded in 20cc syringes.

The shielding core is made of 95% tungsten alloy, with density of 18.1±0.15g/cm³.

· Outer dimension: Ø30.6 × 124 mm

· Inner dimension: Ø22 × 124 mm

· Shielding wall thickness: 2.8 mm

· Lead glass thickness: 5 mm

· Weight: 0.42 Kg per piece

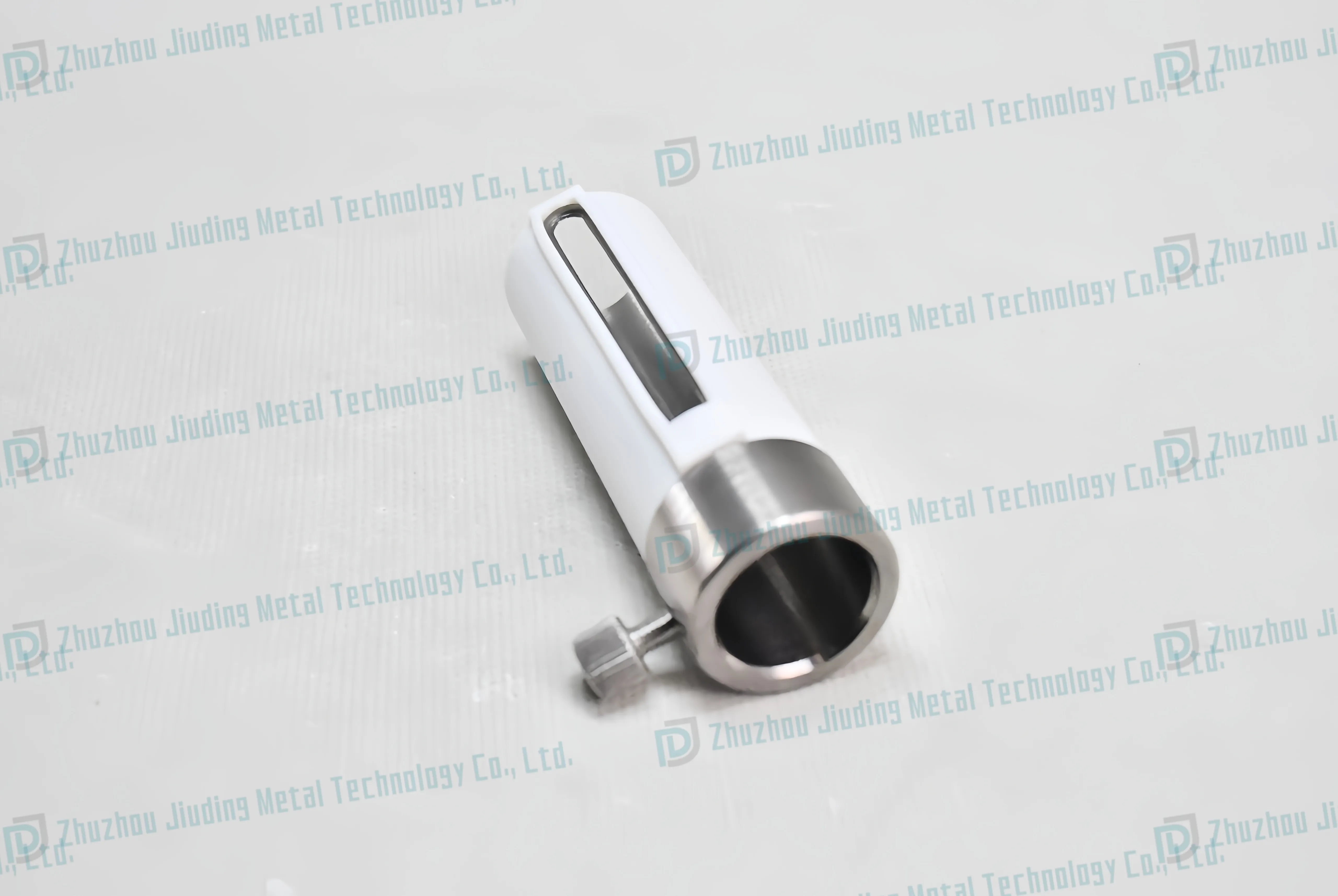

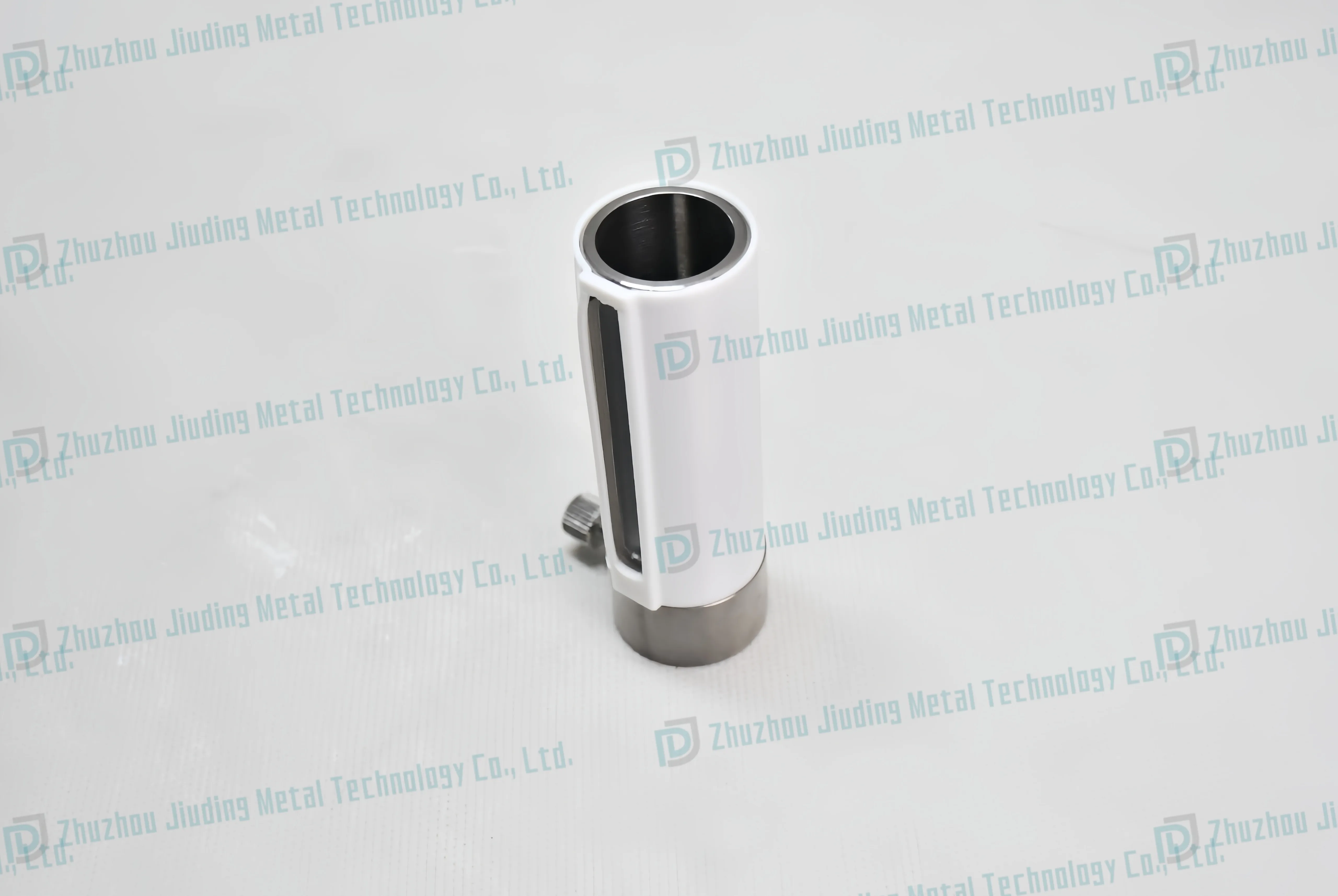

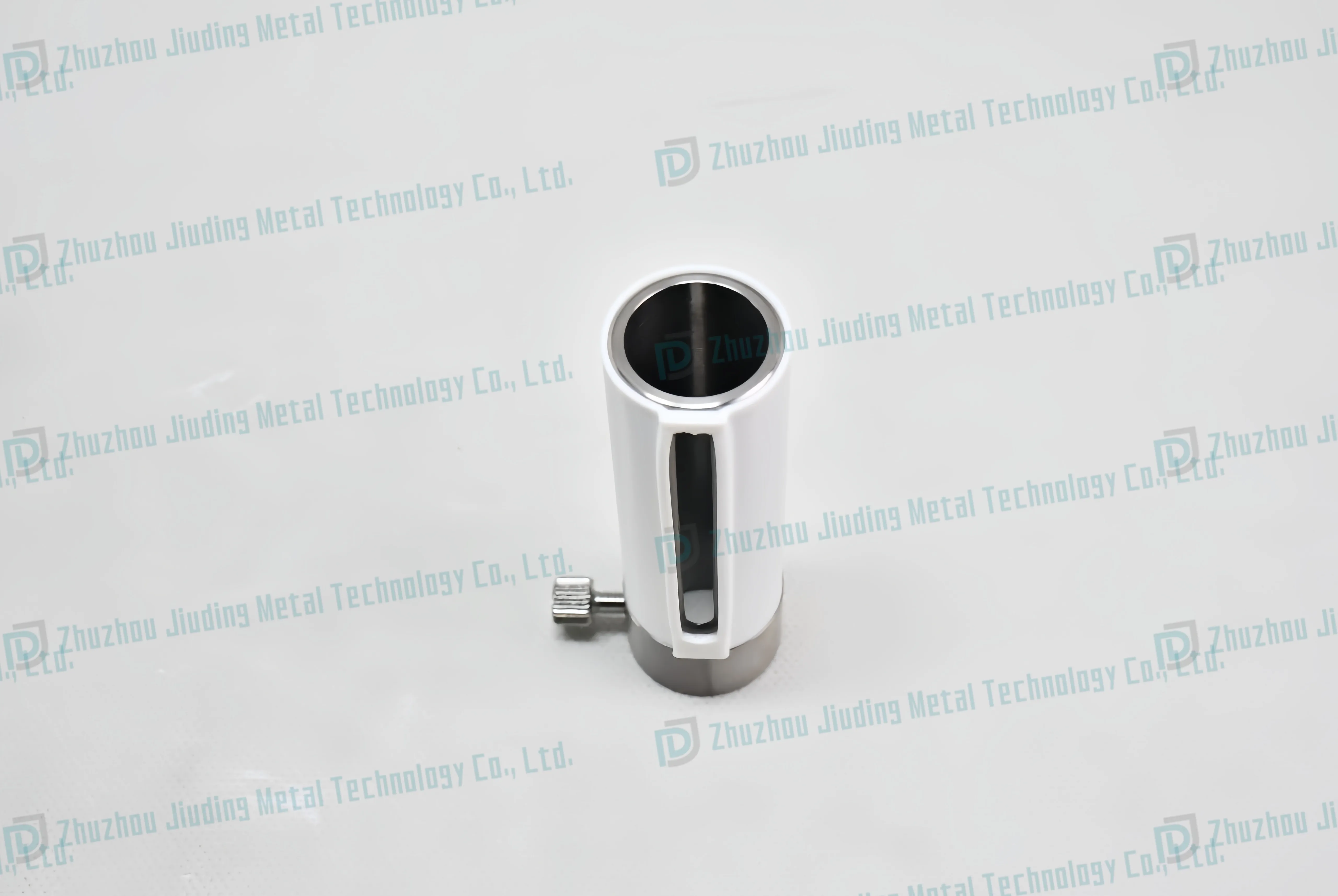

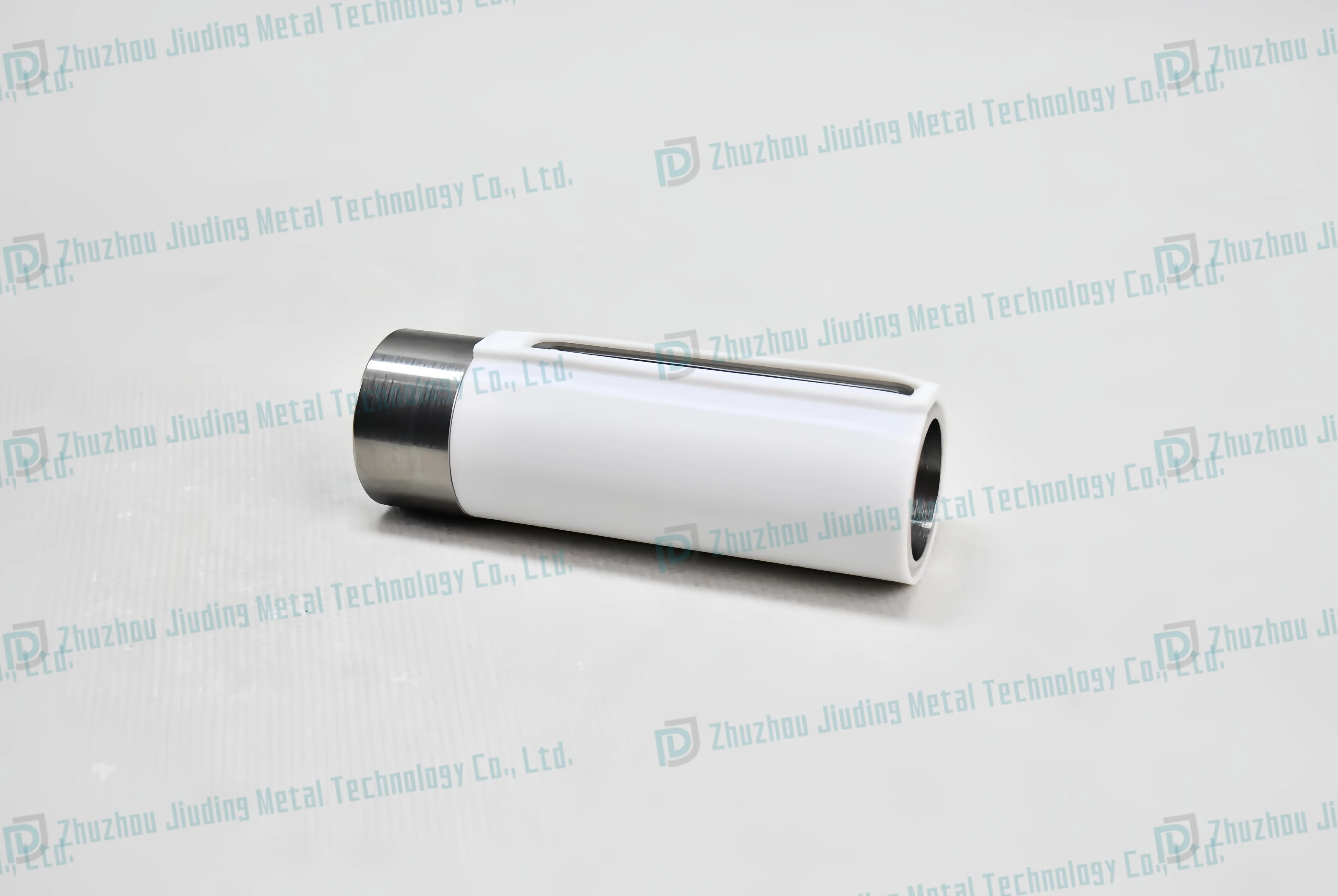

As shown in the picture, the shield adopts white PTFE outer cladding over the tungsten substrate. PTFE material delivers good chemical resistance, easy radioactive decontamination and compatibility with routine medical disinfection. A long rectangular lead glass viewing window runs along the body, allowing operators to read syringe graduations and monitor the liquid level of radiopharmaceuticals along the full length of the 20cc large-volume syringe. It is equipped with a stainless steel end cap and knurled thumb screw locking mechanism. The knurled thumb screw can be tightened by hand without tools to firmly fix the syringe inside, preventing accidental sliding out during operation and transportation.

This high-density tungsten shield provides reliable gamma-ray attenuation for common radionuclides including F-18, Tc-99m and Lu-177. Custom service is available, such as non-magnetic tungsten alloy, customized dimensions, shielding thickness, window size and laser marking.

Key Features

· 95% tungsten alloy core, density 18.1±0.15g/cm³, superior gamma radiation shielding

· PTFE coated surface, anti-contamination, easy to wipe and disinfect

· Long lead glass viewing window for full-length visual inspection of syringe contents

· Tool-free thumb screw lock design for stable syringe fixation

· Compact structure, light weight at only 0.42kg/pc

· Lead-free & eco-friendly, ideal alternative to traditional lead shielding

Application Scenarios

· Nuclear Pharmacy: Professional shielding for large-volume radiopharmaceutical dispensing, compounding, and dose calibration, effectively protecting pharmacists from long-term low-dose radiation exposure.

· PET & PET-CT Imaging Departments: Suitable for daily handling and transportation of F-18, Ga-68 and other positron-emitting radiotracers used for tumor imaging, cardiology and neurology examinations.

· SPECT Imaging Departments: Perfect for shielding Tc-99m, Lu-177, I-131 and other single-photon radionuclides for organ scanning and targeted therapy preparation.

· Medical Radiation Laboratories: Used for experimental research, radiotracer sample preparation and short-term safe storage of large-capacity radioactive syringes.

· Radioactive Drug Transport & On-site Operation: Lightweight and portable design supports safe mobile operation and temporary transfer of 20cc large-volume radioactive syringes.

Certifications & Material Standards

Company Qualifications: ISO9001, ISO45001, ISO18001, ISO13485, RoHS certification, REACH certification International Tungsten Material Standards: Mil-T-21014, ASTM B777-99, GB series standards Inspection & Quality Assurance: Quality Inspection Report, EN10204 3.1 Inspection Certificate, COC / CO / COA. Third-party material inspection certificate available, or we can conduct inspections as per customer’s requirements. Tolerance Execution Standard: GB/T 1804

Machining & Testing Equipment

Machining Capacity: CNC Lathe, Digital controlled lathe, Machining center, Drilling Operations Center, CNC Planar Grinding Machine, Surface grinder. Testing Instruments: 2D Measuring Instrument, 3D Measuring Instrument, Coordinate measuring machine(CMM), Density Detector and other precision testing equipment.

Service Capabilities

1. Custom materials & custom products according to customer requirements. We process products strictly following drawing specifications. We act as your reliable partner for high specific gravity materials & finished parts, and provide complete tungsten alloy product solutions.

2. Multiple packaging options for export: professional export cartons (single carton load capacity up to 20Kg), wooden cases, iron drums, vacuum packaging. Custom packaging available upon request.
